ROD END / HEIM JOINT
PCM PCYM PCYF Rod Ends
✓ ISO 9001 认证
✓ SGS 验证
✓ 26+ 年工厂经验
✓ OEM / ODM 支持
-
- Product Name: PCM PCYM PCYF Rod Ends
- 螺纹： Both 右旋 & 左旋; 公型 & 母型
- 包装详情： 单个塑料袋包装，配螺纹保护盖，装入纸箱。
- 品牌名称: SYZ Machine
- Origin: 中国制造
⚡ 通常 24 小时内回复
MOQ：50 件 / 型号
交期：7–15 天
样品：免费（运费除外）
付款方式：T/T · PayPal · L/C
产品概述
PCM PCYM PCYF Rod Ends 详细介绍

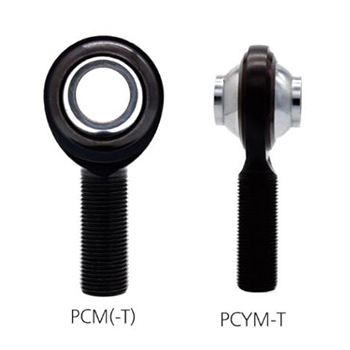

高错位角 Rod Ends PCM、PCYM、PCYF
| BALL | BODY | ||||||
| 52100 轴承钢 | 4130 铬钼钢 | ||||||
| 精密研磨 | HEAT TREATED | ||||||
| HEAT TREATED | 黑色氧化物处理 | ||||||
| 硬铬电镀 | PTFE LINED OPTIONAL | ||||||
PCM Rod Ends 尺寸表
| PCM(-T) ROD END | B | D | W | T | AM | N | CM | a° | STATIC | APPROX | |
| RIGHT | LEFT | DIA. | DIA. | WIDTH | REF. | LENGTH | THREAD | LENGTH | MIS. | RADIAL | WEIGHT |
| HAND | HAND | +0.0025 | +0.010 | +0.005 | +0.015 | UNF | +0.062 | ANGLE | LOAD | (LBS) | |
| PART NO. | PART NO. | -0.0005 | -0.010 | -0.005 | -0.015 | 3A | -0.031 | REF. | (LBS) | ||
| PCMR8(T) | PCML8(T) | 0.5000 | 1.312 | 0.625 | 0.453 | 2.438 | 1/2-20 | 1.500 | 20 | 17,000 | 0.24 |
| PCMR8-10(T) | PCML8-10(T) | 0.5000 | 1.500 | 0.750 | 0.453 | 2.625 | 5/8-18 | 1.625 | 26 | 18,000 | 0.30 |
| PCMR10(T) | PCML10(T) | 0.6250 | 1.500 | 0.750 | 0.484 | 2.625 | 5/8-18 | 1.625 | 26 | 18,000 | 0.36 |
| PCMR8-12(T) | PCML8-12(T) | 0.5000 | 1.750 | 0.875 | 0.453 | 2.875 | 3/4-16 | 1.750 | 24 | 25,000 | 0.57 |
| PCMR10-12(T) | PCML10-12(T) | 0.6250 | 1.750 | 0.875 | 0.484 | 2.875 | 3/4-16 | 1.750 | 24 | 25,000 | 0.57 |
| PCMR12(T) | PCML12(T) | 0.7500 | 1.750 | 0.875 | 0.593 | 2.875 | 3/4-16 | 1.750 | 24 | 25,000 | 0.57 |

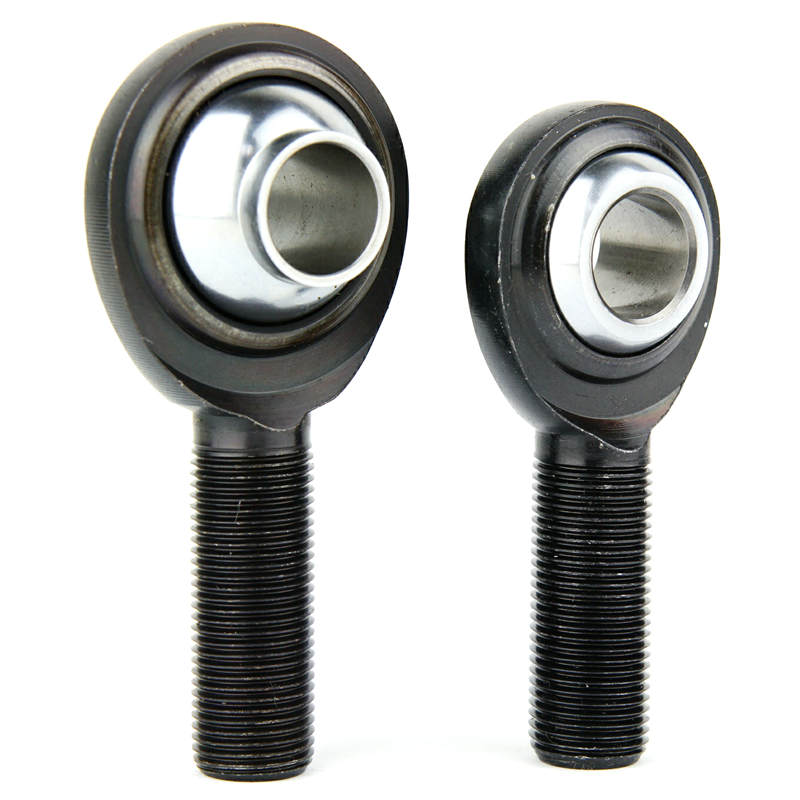

PCYM 和 PCYF Rod Ends
| BALL | BODY | |||||
| 52100 轴承钢 | 4130 铬钼钢 | |||||
| HIGH MISALIGNMENT | HEAT TREATED | |||||
| HEAT TREATED | 黑色氧化物处理 | |||||
| 硬铬电镀 | PTFE LINED | |||||
PCYM 和 PCYF Rod Ends 尺寸表
| PCYM-T ROD END | B | D | W | T | AM | N | CM | a° | STATIC | APPROX | |
| RIGHT | LEFT | DIA. | DIA. | WIDTH | REF. | LENGTH | THREAD | LENGTH | MIS. | RADIAL | WEIGHT |
| HAND | HAND | +0.0025 | +0.010 | +0.005 | +0.015 | UNF | +0.062 | ANGLE | LOAD | (LBS) | |
| PART NO. | PART NO. | -0.0005 | -0.010 | -0.005 | -0.015 | 3A | -0.031 | REF. | (LBS) | ||
| PCYMR6T | PCYML6T | 0.3750 | 1.125 | 0.875 | – | 2.125 | 3/8-24 | 1.375 | 55 | 11,050 | 0.14 |
| PCYMR7T | PCYML7T | 0.4375 | 1.312 | 1.000 | – | 2.438 | 7/16-20 | 1.500 | 58 | 14,449 | 0.22 |
| PCYMR8T | PCYML8T | 0.5000 | 1.500 | 1.250 | – | 2.625 | 1/2-20 | 1.625 | 65 | 16,240 | 0.33 |
| PCYMR8-10T | PCYML8-10T | 0.5000 | 1.750 | 1.250 | – | 2.875 | 5/8-18 | 1.750 | 65 | 24,158 | 0.44 |
| PCYMR10T | PCYML10T | 0.6250 | 1.750 | 1.375 | – | 2.875 | 5/8-18 | 1.750 | 64 | 21,219 | 0.51 |
| PCYMR10-12T | PCYML10-12T | 0.6250 | 2.000 | 1.375 | – | 3.375 | 3/4-16 | 2.000 | 64 | 30,290 | 0.68 |
| PCYMR12T | PCYML12T | 0.7500 | 2.000 | 1.500 | – | 3.375 | 3/4-16 | 2.000 | 61 | 29,127 | 0.79 |
| PCYF-T ROD END | B | D | W | T | AF | N | CF | a° | STATIC | APPROX | |
| PCYFR6T | PCYFL6T | 0.3750 | 1.125 | 0.875 | – | 2.125 | 3/8-24 | 1.062 | 55 | 11,050 | 0.20 |
| PCYFR8T | PCYFL8T | 0.5000 | 1.500 | 1.250 | – | 2.625 | 1/2-20 | 1.375 | 65 | 16,240 | 0.43 |
| PCYFR10T | PCYFL10T | 0.6250 | 1.750 | 1.375 | – | 2.875 | 5/8-18 | 1.562 | 64 | 21,219 | 0.57 |
| PCYFR12T | PCYFL12T | 0.7500 | 2.000 | 1.500 | – | 3.375 | 3/4-16 | 1.785 | 61 | 29,127 | 0.84 |
