ROD END / HEIM JOINT

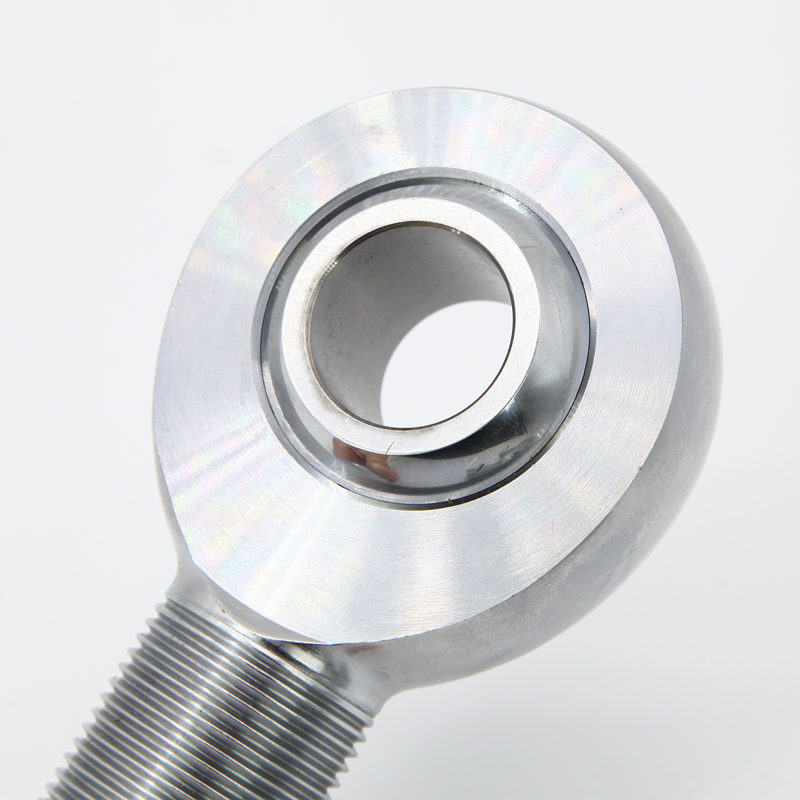

XM XF Rod Ends

Name: XM XF Rod Ends
Availability: InStock

✓ ISO 9001 认证

✓ SGS 验证

✓ 26+ 年工厂经验

✓ OEM / ODM 支持

Product Name: XM XF Rod Ends

螺纹： Both 右旋 & 左旋; 公型 & 母型

包装详情： 单个塑料袋包装，配螺纹保护盖，装入纸箱。

品牌名称: SYZ Machine

Origin: 中国制造

获取报价 →

⚡ 通常 24 小时内回复

MOQ：50 件 / 型号

交期：7–15 天

样品：免费（运费除外）

付款方式：T/T · PayPal · L/C

产品概述

XM XF Rod Ends 详细介绍

BALL	RACE	BODY
52100 轴承钢	INJECTION	4130 铬钼钢
精密研磨	MOLDED	HEAT TREATED
HEAT TREATED	REINFORCED	硬铬电镀
硬铬电镀	带 PTFE 的尼龙

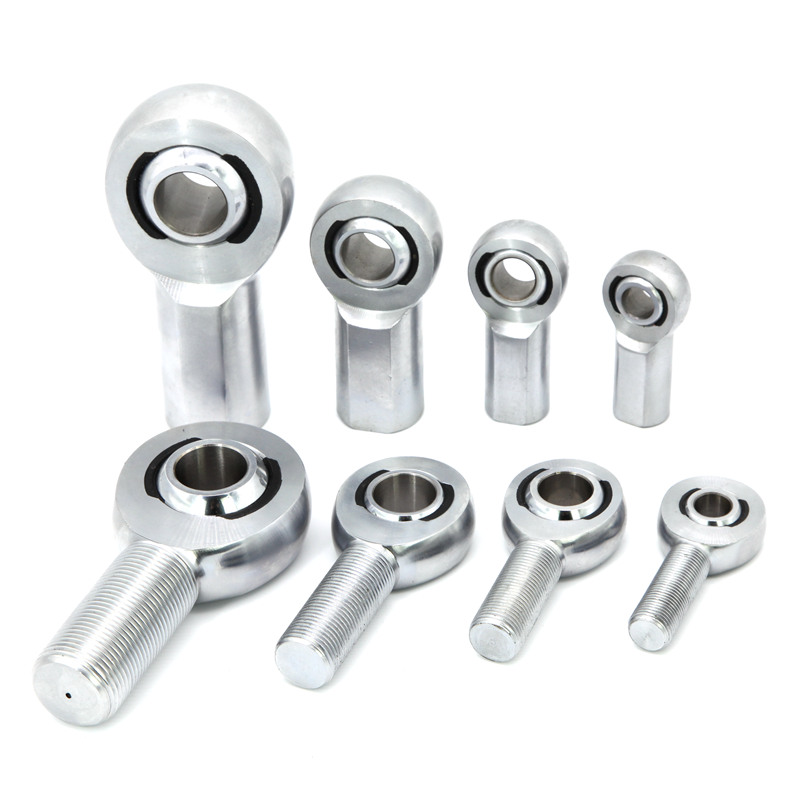

xm xf rod end

XM、XF Rod Ends 尺寸表

XM ROD END		B	D	W	T	BALL	AM	N	CM	a°	STATIC	APPROX
RIGHT	LEFT	DIA.	DIA.	WIDTH	WIDTH	DIA.	LENGTH	THREAD	LENGTH	MIS.	RADIAL	WEIGHT
HAND	HAND	0.0025	0.01	0.005	REF.	REF.	0.015	UNF	0.062	ANGLE	LOAD	(LBS)
PART NO.	PART NO.	-0.0005	-0.01	-0.005			-0.015	3A	-0.031	REF.	(LBS)
XMR3	XML3	0.1900	0.625	0.312	0.250	0.437	1.250	10-32	0.750	13	2,851	0.03
XMR3-4	XML3-4	0.1900	0.750	0.312	0.250	0.437	1.562	1/4-28	1.000	10	5,260	0.04
XMR4	XML4	0.2500	0.750	0.375	0.281	0.500	1.562	1/4-28	1.000	16	5,260	0.04
XMR4-5	XML4-5	0.2500	0.875	0.375	0.281	0.500	1.875	5/16-24	1.250	13	8,452	0.07
XMR5	XML5	0.3125	0.875	0.437	0.344	0.625	1.875	5/16-24	1.250	14	7,639	0.07
XMR5-6	XML5-6	0.3125	1.000	0.437	0.344	0.625	1.938	3/8-24	1.250	12	12,978	0.11
XMR6	XML6	0.3725	1.000	0.500	0.406	0.719	1.938	3/8-24	1.250	12	9,544	0.11
XMR6-7	XML6-7	0.3725	1.125	0.500	0.406	0.719	2.125	7/16-20	1.375	10	17,508	0.15
XMR7	XML7	0.4375	1.125	0.562	0.437	0.812	2.125	7/16-20	1.375	14	10,285	0.15
XMR7-8	XML7-8	0.4375	1.312	0.562	0.437	0.812	2.438	1/2-20	1.500	12	23,452	0.24
XMR8	XML8	0.5000	1.312	0.625	0.500	0.937	2.438	1/2-20	1.500	12	16,238	0.24
XMR8-10	XML8-10	0.5000	1.500	0.625	0.500	0.937	2.625	5/8-18	1.625	10	31,390	0.36
XMR8-12	XML8-12	0.5000	1.750	0.625	0.562	1.125	2.875	3/4-16	1.750	16	40,572	0.42
XMR10	XML10	0.6250	1.500	0.750	0.562	1.125	2.625	5/8-18	1.625	16	17,955	0.36
XMR10-12	XML10-12	0.6250	1.750	0.750	0.562	1.125	2.875	3/4-16	1.750	13	40,572	0.57
XMR12	XML12	0.7500	1.750	0.875	0.687	1.312	2.875	3/4-16	1.750	14	28,081	0.57
XMR12-14	XML12-14	0.7500	2.000	0.875	0.687	1.312	3.375	7/8-14	1.875	12	55,692	0.88
XMR14	XML14	0.8750	2.000	0.875	0.765	1.375	3.375	7/8-14	2.000	7	45,051	0.88
XMR16	XML16	1.0000	2.750	1.375	1.015	1.875	4.125	1 1/4-12	2.125	17	76,200	2.41
XMR16-1	XML16-1	1.0000	2.750	1.375	1.015	1.875	4.125	1-14	2.125	17	76,200	2.13
XMR16-2	XML16-2	1.0000	2.750	1.375	1.015	1.875	4.125	1-12	2.125	17	76,200	2.13

XF ROD END		B	D	W	T	BALL	AF	N	CF	a°	STATIC	APPROX
XFR3	XFL3	0.1900	0.625	0.312	0.250	0.437	1.062	10-32	0.562	13	3,733	0.04
XFR4	XFL4	0.2500	0.750	0.375	0.281	0.500	1.312	1/4-28	0.750	16	6,190	0.06
XFR5	XFL5	0.3125	0.875	0.437	0.344	0.625	1.375	5/16-24	0.750	14	7,639	0.09
XFR6	XFL6	0.3750	1.000	0.500	0.406	0.719	1.625	3/8-24	0.937	12	9,544	0.14
XFR7	XFL7	0.4375	1.125	0.562	0.437	0.812	1.812	7/16-20	1.062	14	10,285	0.19
XFR8	XFL8	0.5000	1.312	0.625	0.500	0.937	2.125	1/2-20	1.187	12	15,336	0.31
XFR10	XFL10	0.6250	1.500	0.750	0.562	1.125	2.500	5/8-18	1.500	16	17,955	0.45
XFR12	XFL12	0.7500	1.750	0.875	0.687	1.312	2.875	3/4-16	1.750	14	28,081	0.69
XFR16	XFL16	1.0000	2.750	1.375	1.015	1.875	4.125	1 1/4-12	2.125	17	76,200	2.11
